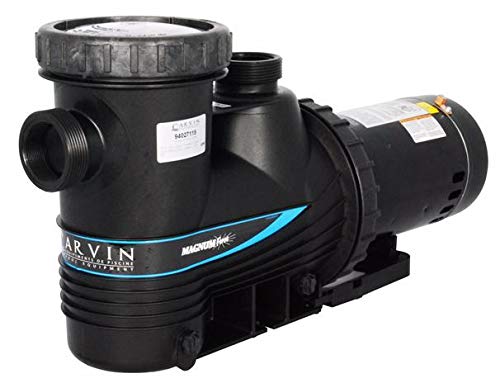

Carvin Magnum Force 2 Speed Pool Pump for Inground Pool

Brand: Carvin

Features:

• Exclusive dual Ring-Lok design gives tool free access to strainer basket and pump intenals. 208 cu.in (3411 cm2) heavy-duty strainer basket with exclusive priming tube for superior priming capabilities.
• Flap prevents debris in the pump strainer skimmer basket and filter from flowing back into the pool. The flap also prevents residual hot water in the heater from flowing into filter and causing damage to grids. valves. gaskets. etc.
• Internal ribs in large strainer basket assure flow even when filled with leaves and debris. One-piece case eliminates bolts and gaskets and provides for quiet operation.
• Flexible connections : 2 (51mm) FNPT or 2 (51mm) unions (included). Floating eye seal between closed impeller and diffuser maximizes efficiency. Model 15UTMF-S2.
• Model 15UTMF-S2. Switch Hi / Off / Low.

Details: Patented air-cooled heat sink allows pump to run dry without damage to shaft seal. UNCONDITIONAL ONE-YEAR WARRANTY AGAINST SEAL FAILURE.Specifications:Model Item Number: 94027215Hertz (Hz): 60Voltage (V): 230Power (HP): 1 1/2 – 1/5Full load amps: 8.0/2.5Speed: Two SpeedService Factor: 1.1Phase: Single phaseParticularity: Unity service factorWARNINGDO NOT INSTALL OR OPERATE THIS PUMP UNLESS YOU HAVE READ AND FOLLOW THE OWNER’S MANUAL WHICH IS INCLUDED WITH THIS PUMP AND WHICH IS PUBLISHED ON THIS WEBSITE UNDER DOCUMENTS. THE OWNER’S MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. FAILURE TO FOLLOW ALL INSTRUCTIONS IN THE OWNER’S MANUAL COULD RESULT IN SERIOUS INJURY INCLUDING ELECTRICAL SHOCK AND SUCTION ENTRAPMENT AND EXPOSURE TO PRESSURE FIRE AND BURN HAZARDS. CHILDREN SHOULD BE SUPERVISED TO ENSURE THEY DON’T CLIMB ON THE PUMP.THIS PUMP SHOULD BE INSTALLED AND SERVICED ONLY BY A QUALIFIED PROFESSIONAL. ALL WIRING MUST BE DONE BY A LICENSED ELECTRICIAN TO ENSURE COMPLIANCE WITH ALL STATE AND LOCAL CODES. FAILURE TO WIRE THE PUMP CORRECTLY COULD CAUSE AN ELECTRICAL SHOCK. DAMAGE THE PUMP MOTOR AND VOID THE WARRANTY.

EAN: 0795152504413
