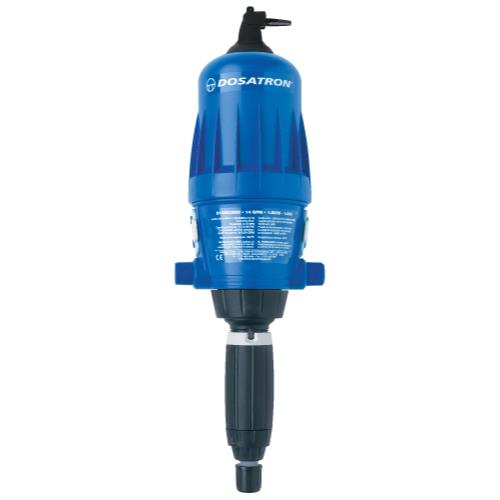

Dosatron Water Powered Doser 14 GPM 1:3000 to 1:333 (6/Cs)

This water powered doser is directly installed into the water supply line. Dosatron Doser operates by using water pressure as the power source (no electricity needed). The water activates the Dosatron. which takes up the required percentage of concentrate. Inside the Dosatron. the concentrate is mixed with the water. The water pressure forces the solution downstream. Operating pressure range is 4.3 -85 PSI and water flow range is 0.05 – 14 GPM. Injection capabilities of 1:3000 to 1:333 ( 0.03 to 0.3%) 0.0425 to 0.384 ounces per gallon. Unit has 3/4 in NPT connections. Includes mounting bracket. suction hose. bypass. union. weighted strainer. and quick start guide. Mini-maintenance seal kit for Dosatron Dosers – should be replaced on an annual basis.
