Humminbird XHS 9 HDSI 180 T 8211 Transducer 8211 included transducer XHS9HDSI180T

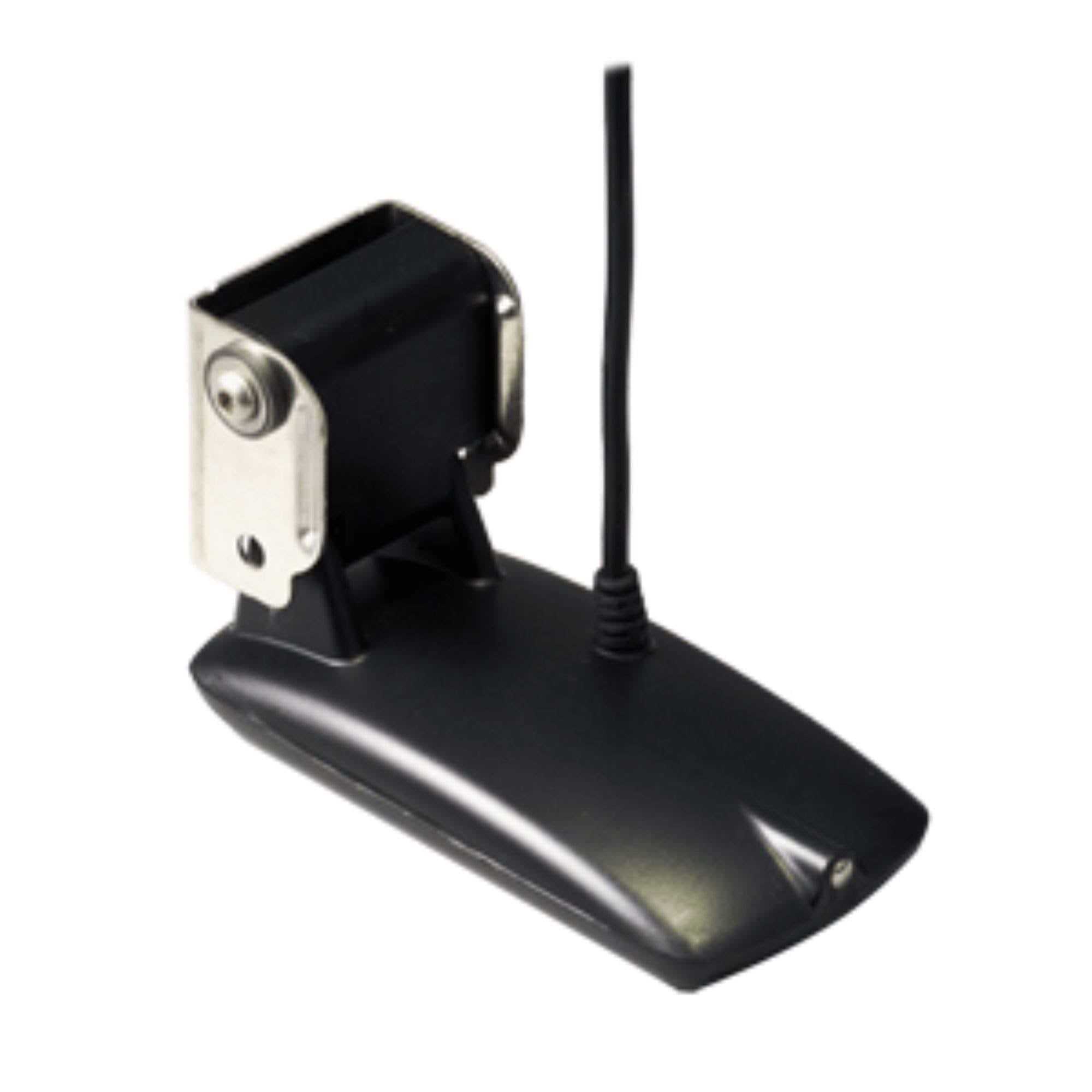

Transducer. Xhs 9 Hdsi 180 T The Humminbird XHS 9 HDSI 180 T Transom Mount Transducer is a high-speed transducer designed to mount on the transom. or back. of the boat. in contact with the surface of the water. and operate in conjunction with a compatible Humminbird sonar or fish finder system. This unit is combination DualBeam PLUS transducer that features 20- and 60-degree cone angles operating on 200 kHz and 83 kHx frequencies respectively. as well as a side-imaging sonar with two 84-degree beams operating at 800 kHz. The XHS 9 HDSI 180 T includes a built-in temperature sensor. a 20-foot cable. and all the necessary high-speed hardware to get up and running right away. Although this unit has the same hole pattern as some older-version transducers. it utilizes a new design that is more secure and less prone to kick up at the high force of waves. as well as having an improved running angle. and an optional lock-down screw to override the kick up. The Humminbird XHS 9 HDSI 180 T transducer is specifically designed for use with Humminbird’s 997c SI Combo fish finder and other side-imaging sonar systems.
