About this item
- WHO IS JACKERY: Founded in 2012. Jackery specializes in providing outdoor green power solutions for explorers. Won the Red Dot Award in 2018. Jackery portable power station. power outdoors
- HIGH CONVERSION EFFICIENCY SOLAR GENERATOR: High conversion efficiency up to 23%. generate more energy and perform better than conventional panels in hot weather

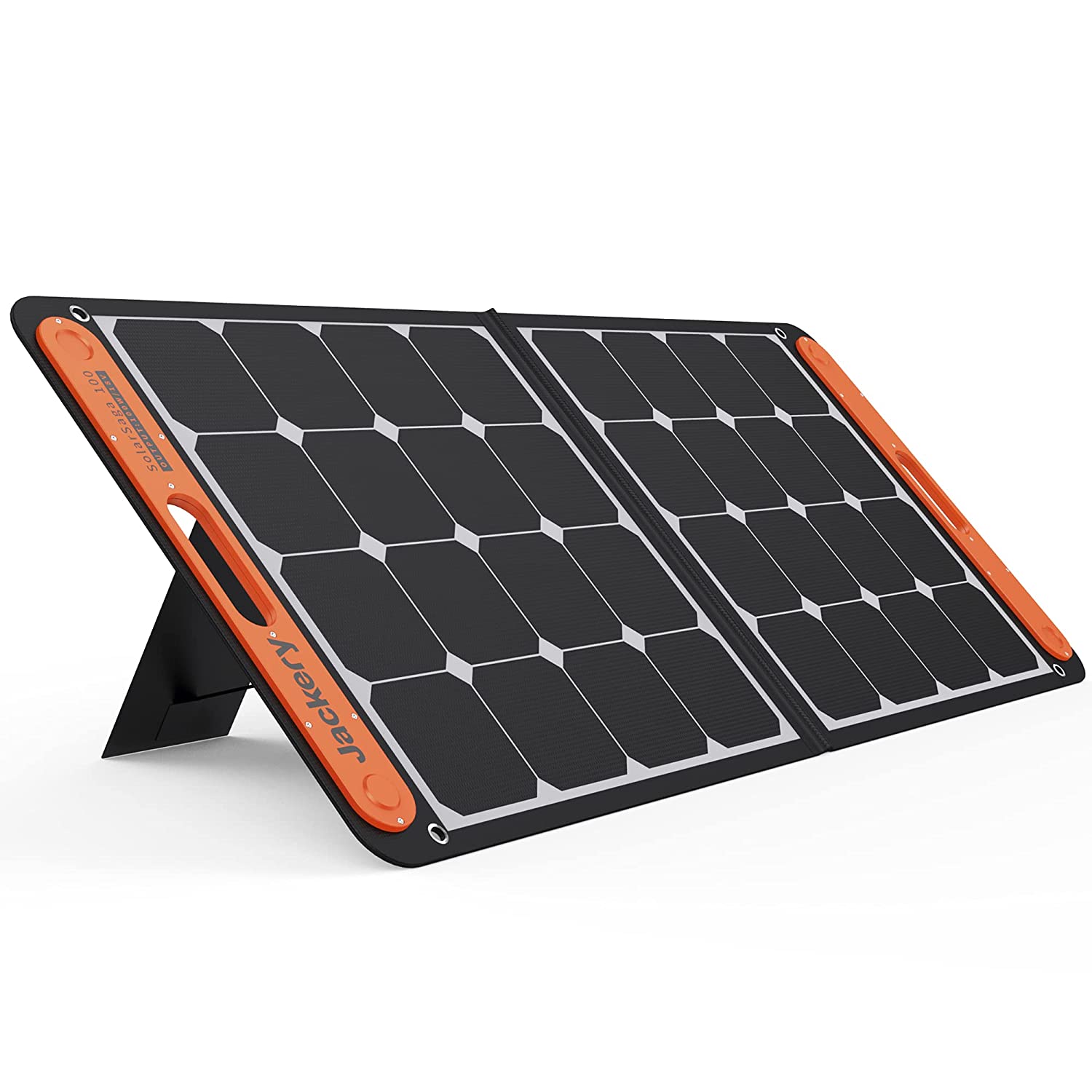

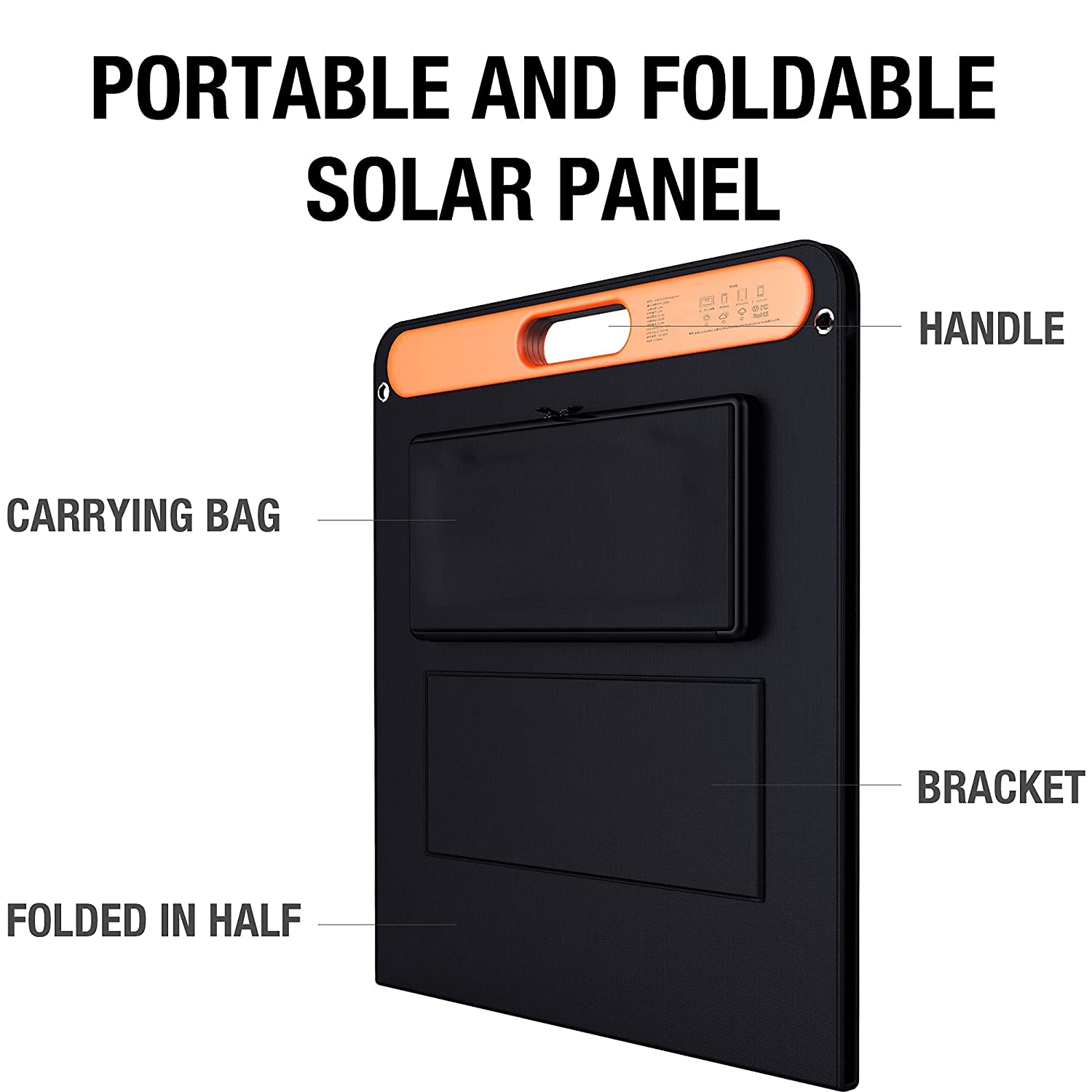

- PORTABLE & FOLDABLE SOLAR CHARGER WITH KICKSTAND: Foldable design with a TPE rubber handle. Convenient to carry it wherever you go. Slightly adjust the angle with the kickstand. Build up your green Portable-Solar-Generator System together with Jackery Solar Saga 100W and Jackery Explorer 240/500/1000 power station (sold separately). Ideally suited for outdoor life and even unexpected power outages

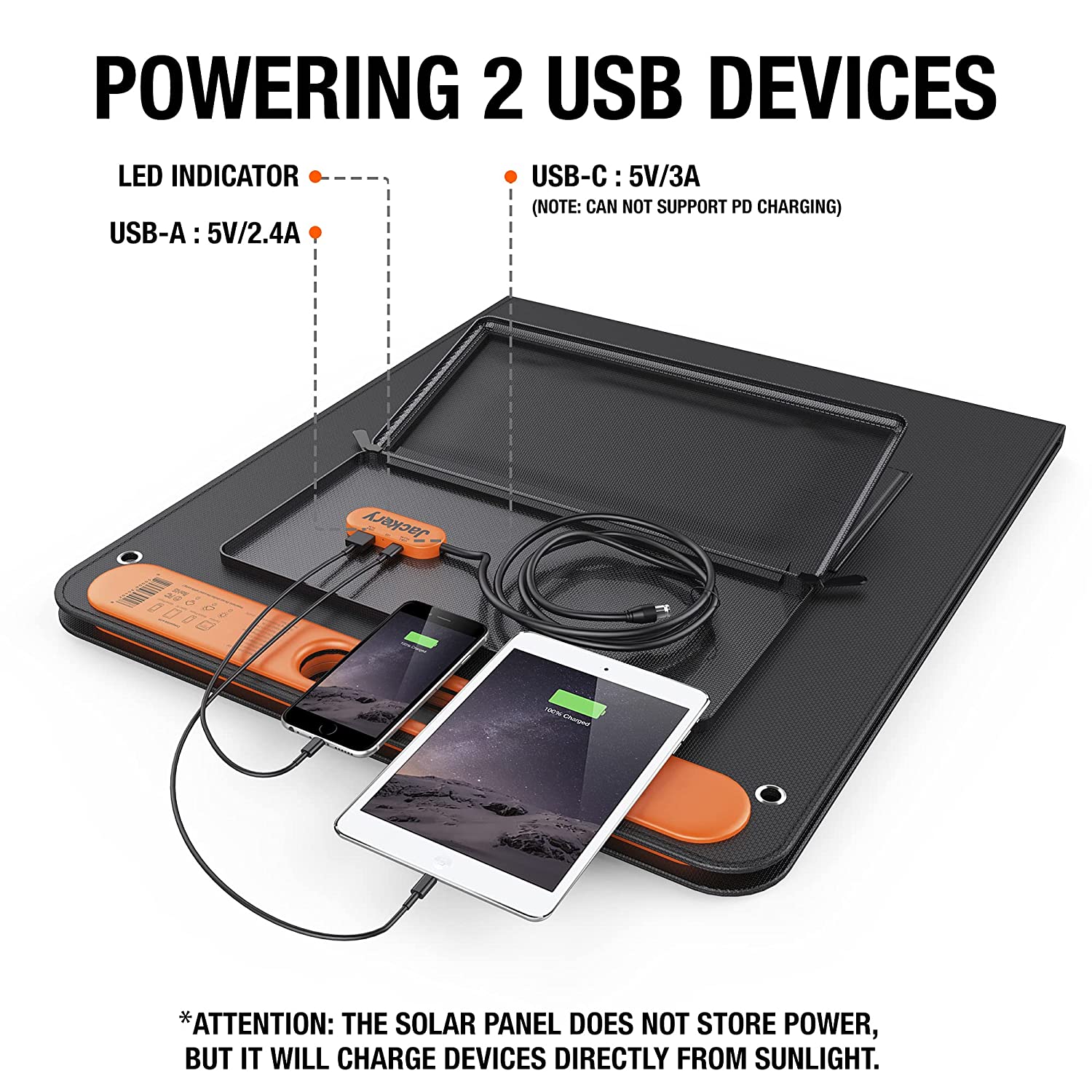

- SOLAR CHARGER WITH USB OUTPUTS: Equipped with 1* USB-C(5V.3A) output port and 1* USB-A(5V. 2.4A) output port. charging multiple small devices at the same time. including smartphones. tablets. digital cameras and more. Please note that USB-C port can not support PD charging
- WHAT’S INCLUDED: 1*Jackery SolarSaga 100W Solar Panel. If you have any problems during use. please contact us. our service team will be available any time
Product Specifications
| Compatible Devices | Cellular Phones . Tablets |
|---|---|
| Ean | 0850027220642 . 0850006304967 |
| Model Number | JSS-100A |
| Part Number | 80-0100-UKO001 |
| Specification Met | |
| Style | 100W |
| UPC | 850027220642 . 850006304967 |
| Wattage | 100.00 watts |
Specification for this product family
| Brand Name | Jackery |
|---|---|
| Compatible Devices | Cameras |
| Connectivity Technology | USB |
| Connector Type | USB |
| Material | Monocrystalline Silicon |
| Output Voltage | 5.0 volts |
| Part Number | 100w |
| Power Source Type | Solar Powered |
Technical Details
| Manufacturer | Jackery |
|---|---|
| Part number | 80-0100-UKO001 |
| Item Weight | 4.68 kg |
| Package Dimensions | 64.77 x 55.12 x 7.11 cm; 4.68 Kilograms |
| Item model number | JSS-100A |
| Style | 100W |
| Material | Monocrystalline Silicon |
| Power source type | Solar Powered |
| Wattage | 100 watts |
| Item Package Quantity | 1 |
| Batteries included? | No |
| Batteries Required? | No |
From the brand
-
-
LIMITLESS SOLAR POWER
-
BUILT TO LAST
Product Description
FAQ
Q1: Why the solar can not produce 100W power when charging to Jackery power station?
As you know. solar panels are affected by many factors. such as the intensity of the light and the angle of the panel put on the ground. 100W is
tested in an ideal laboratory. However. the intensity of the light constantly changes. In addition. the angle of the light illuminating the solar panel also
changes with the rotation of the sun.
Please try to test your solar panel under the full sunlight to see. and make sure there is no shadow cast on the panel.
Q2: Is the solar panel waterproof?
The Saga 100W is not waterproof. To Maximize the lifespan of the module. please don’t make it get wet.
Q3: How to clean the solar panel surface?
We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface.
Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as
soon as possible from the solar surface to avoid a reduction in performance.
NOTE:
The charging cable of SolarSaga 100 has detachable adapter connectors. The first connector is compatible with Explorer 1500/2000 Pro only. Please remove it if used for Explorer 240/500/1000.
|
|
|
|
|---|---|---|
SOAK THE RAY EFFICIENCYHigh Solar Conversion Efficiency – Up to 23% Stats above are tested and provided by Jackery Lab. Charging time may vary under real circumstances such as different temperature. angles and potitions to the sun. |
IP65 WATER-RESISTANCERated IP65. a water-resistant level that will protect from water splashing (Do not place it under the rain. or to soak in water). |
SAFE AND RELIABLE
|
TECHNICAL DETAILS
| Model: | SolarSaga 100 |
| Peak Power: | 100W |
| Cell Efficiency: | 23% |
| Power Voltage: | 18V |
| Power Current: | 5.55A |
| Open Circuit Voltage: | 21.6V |
| Short Circuit Current: | 6.1A |
| USB-A Output: | 5V-2.4A |
| USB-C Output: | 5V-3A |
| Operating Temperature Range: | -10-65°C |
