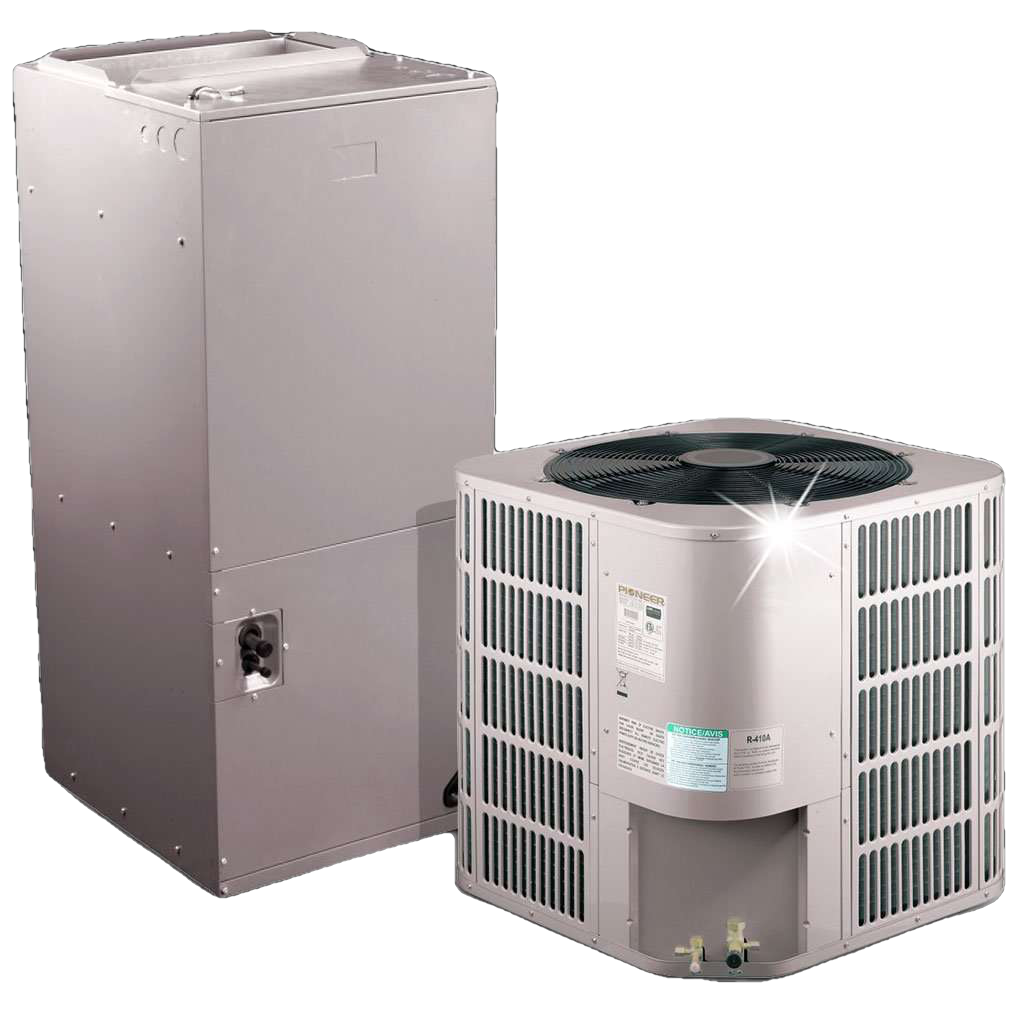

Name: Pioneer DYC024GMFI18RT 24000 BTU Central Split DC Inverter Duct Type Air Conditioner Heat Pump 175 SEER New
SKU: dlz1662553319482-20853432
Price: 8.70 USD
Availability: InStock

Ducted Convertible central split systems offer climate control for multiple rooms and areas. utilizing a network of air ducts (existing or field designed) using a single set of equipment. Ideal for whole house climate control. In this setting a single set of equipment will properly condition a large area with many rooms. under the same comfort settings.

OVERVIEW (LEFT COLUMN)

Overview (Right Column)

	2 year limited factory warranty
	Brand new?
	Ships directly from Pioneer out of?FL
	Authorized Pioneer dealer

?Outlets

Features (Left Column)

Ultra High Efficiency Inverter+ central ducted split heat pump system
Cooling capacity: 24.000 BTU/H with 17.5 SEER efficiency
Heating capacity: 23.800 BTU/H with 9.5 HSPF efficiency

Features (Right Column)

Central Ducted Air Conditioning & Heating System
Variable Speed DC Inverter Operation Mode

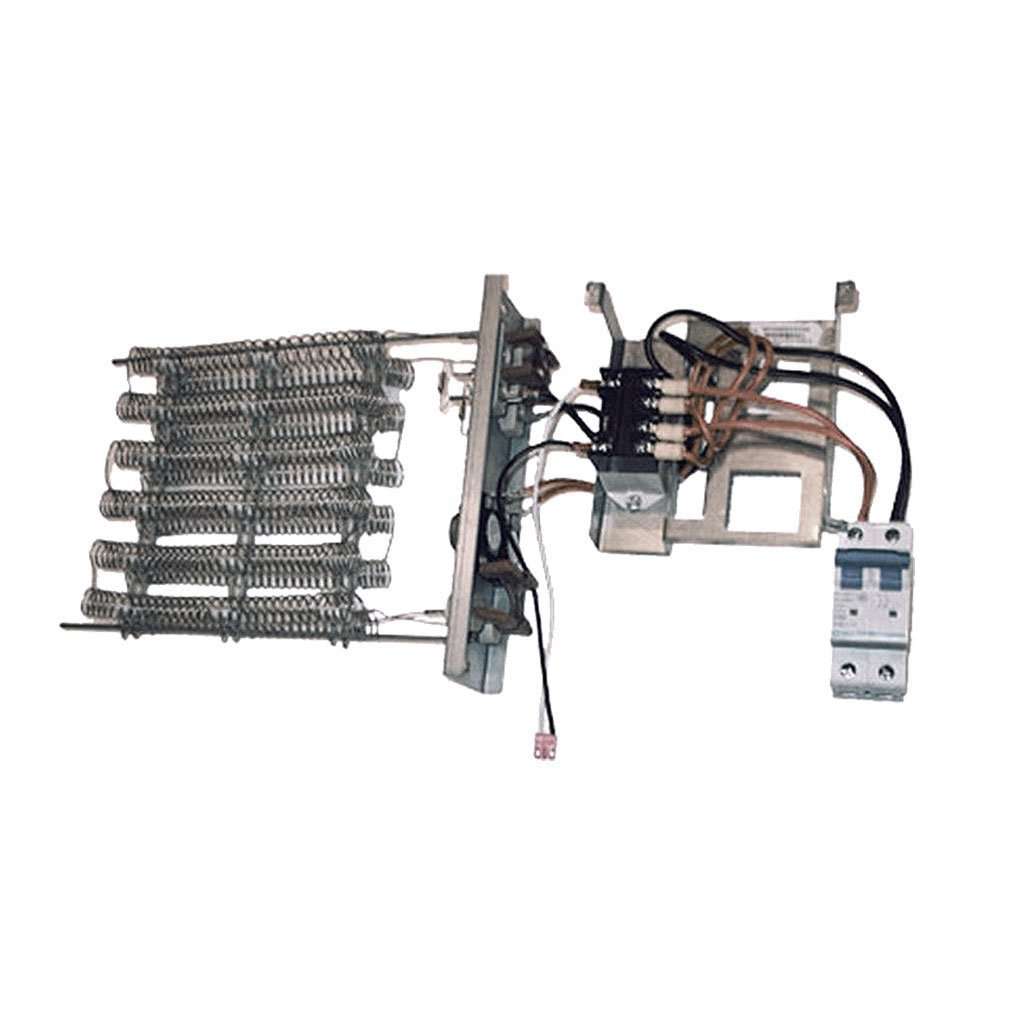

Includes Electric Strip Heater

Product Specifications (Left Column)

Manufacturer’s Warranty	2 Yr Consumer Limited
Power Supply	208~230v. 60Hz. 1Ph
Rated Cooling Capacity	24.000 BTU
Cooling SEER	17.500 BTU
Rated Heating Capacity	23.800 BTU
Heating HSPF	9.500 BTU
Refrigerant Type	R410a
Suitable Area	800 sq.ft

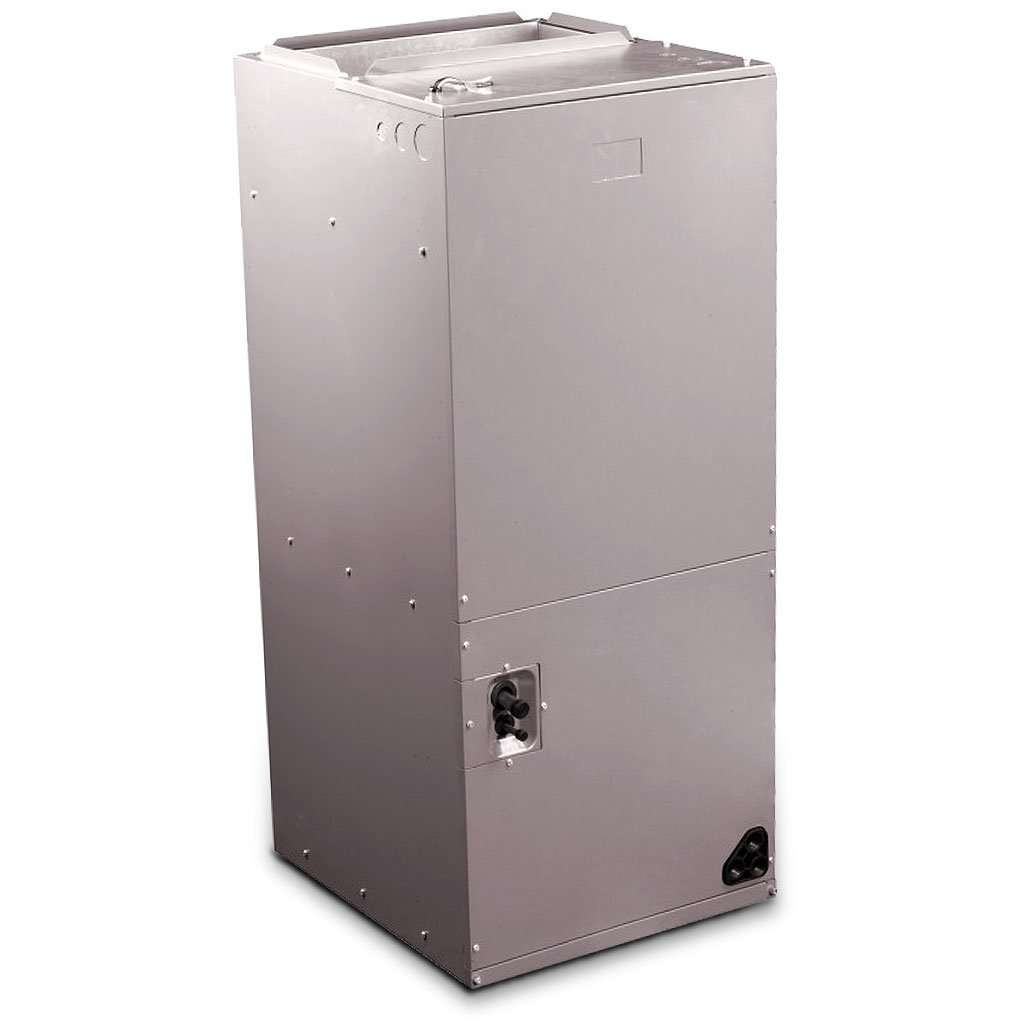

Indoor Unit Data
Model	DC024GMFI18HT2
Air Flow	800 CFM
Sound Level	63db
Net Dimensions (WxDxH)	19.6″ x 21.6″ x 46.5″
Carton Dimensions (WxDxH)	22.6″ x 22.6″ x 47.8″
Net / Gross Weight	119lbs. / 132lbs.

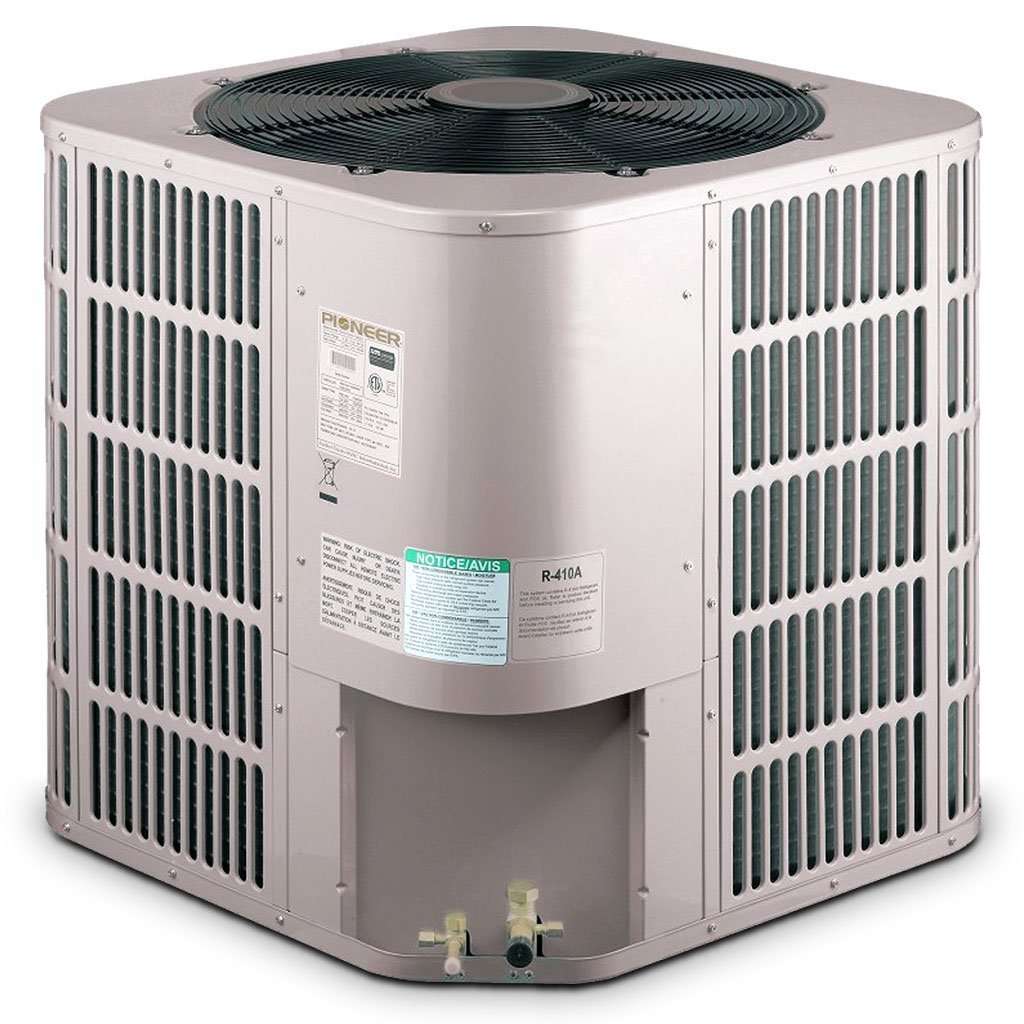

Outdoor Unit Data
Model	YD024GMFI18MR2
Sound Level	75db
Net Dimensions (WxDxH)	29.2″ x 29.2 x 24.9″
Carton Dimensions (WxDxH)	30.2″ x 30.2″ x 26.3″
Net /Gross Weight	143lbs./152lbs.

Product Specifications (Right Column)

Package Contents:

Indoor Unit
Outdoor Unit
Electric Strip Heater
Installation Manual
User¡¯s Manual
Manufacturer Warranty

WARRANTY

This item comes with a 2 year limited parts warranty and 5 years on the compressor

Manuals & Documentation
